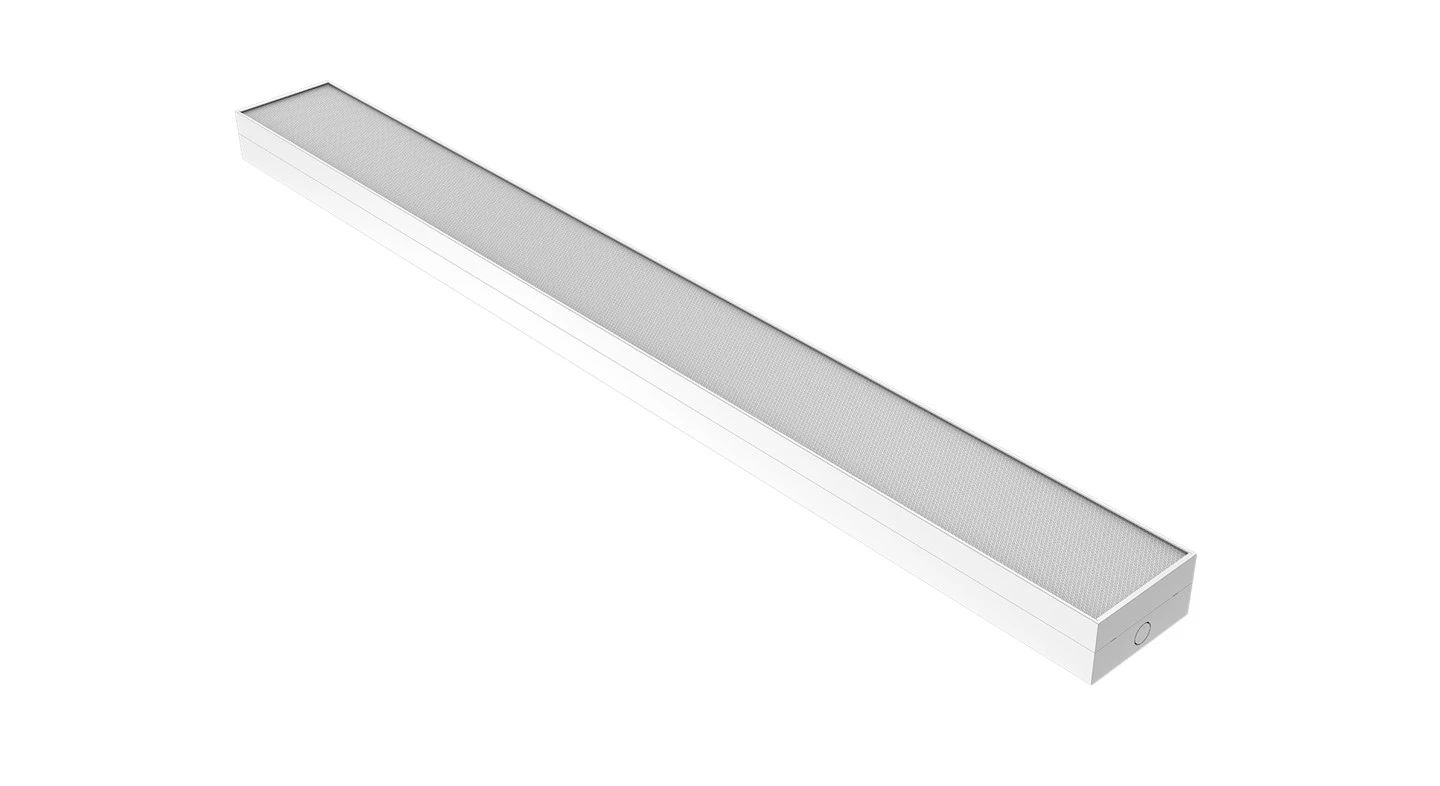

Kingston UGR Batten Light

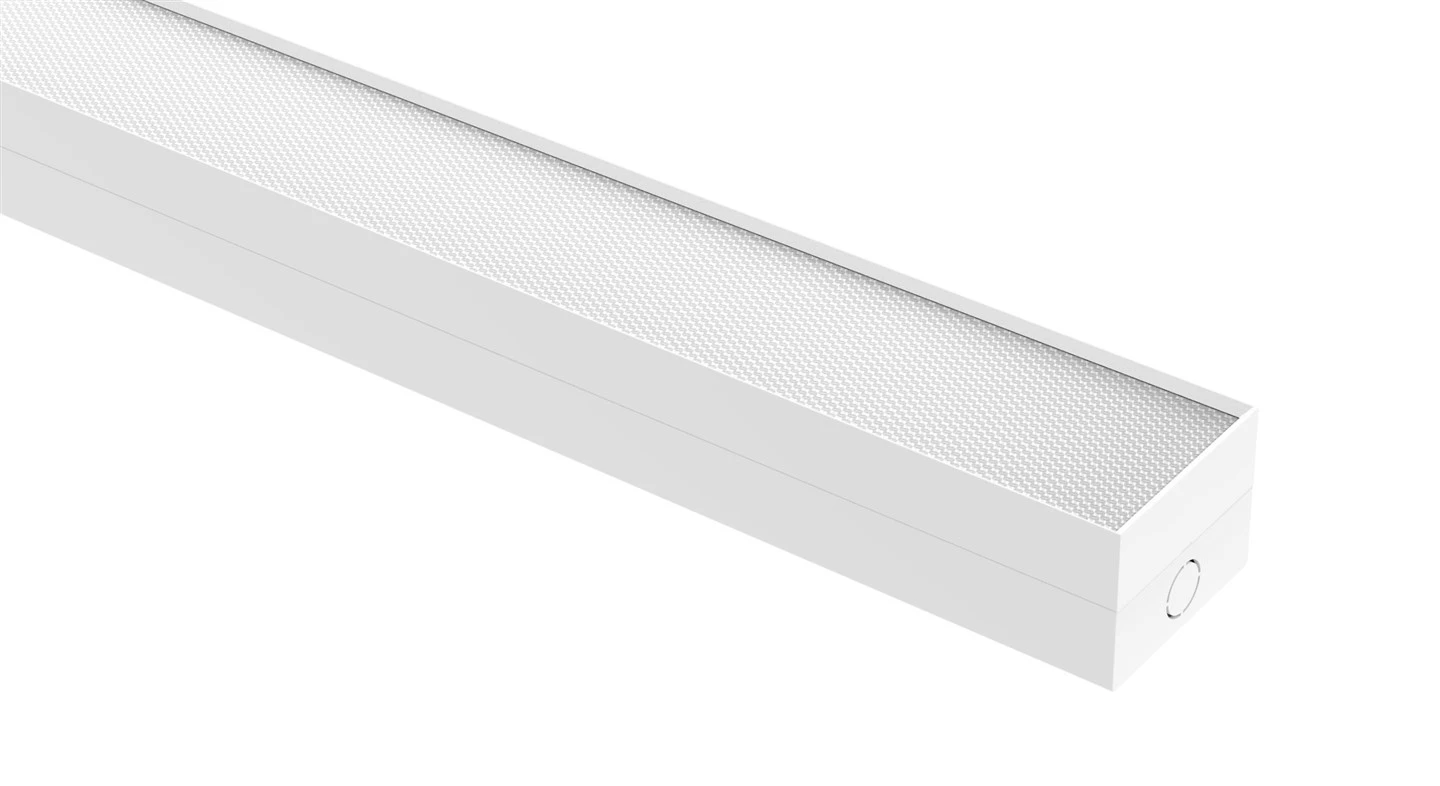

Kingston batten -2

Kingston batten -3

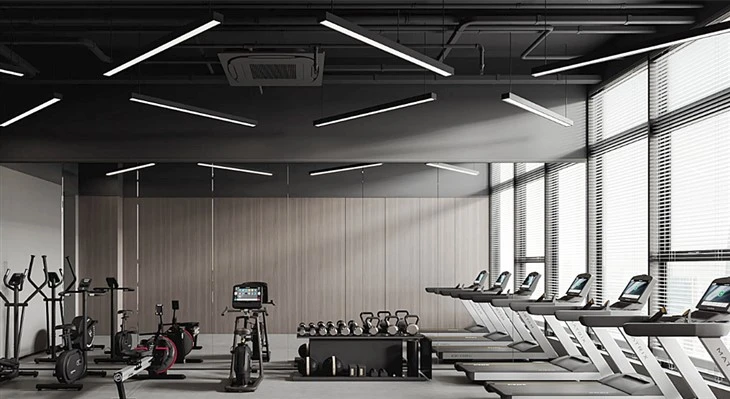

Kingston batten -4

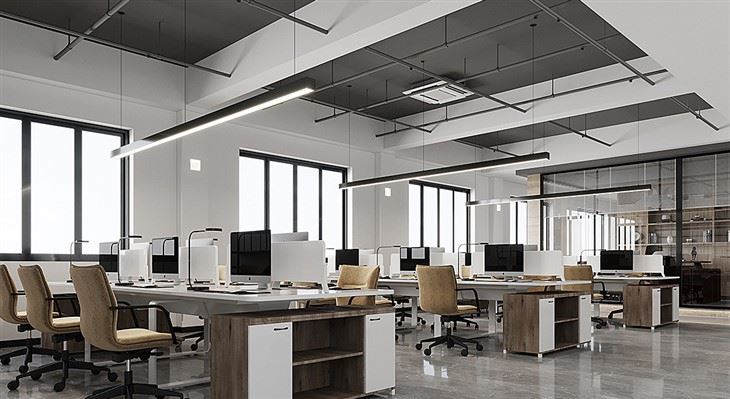

Kingston batten -5

Sharaxaad:

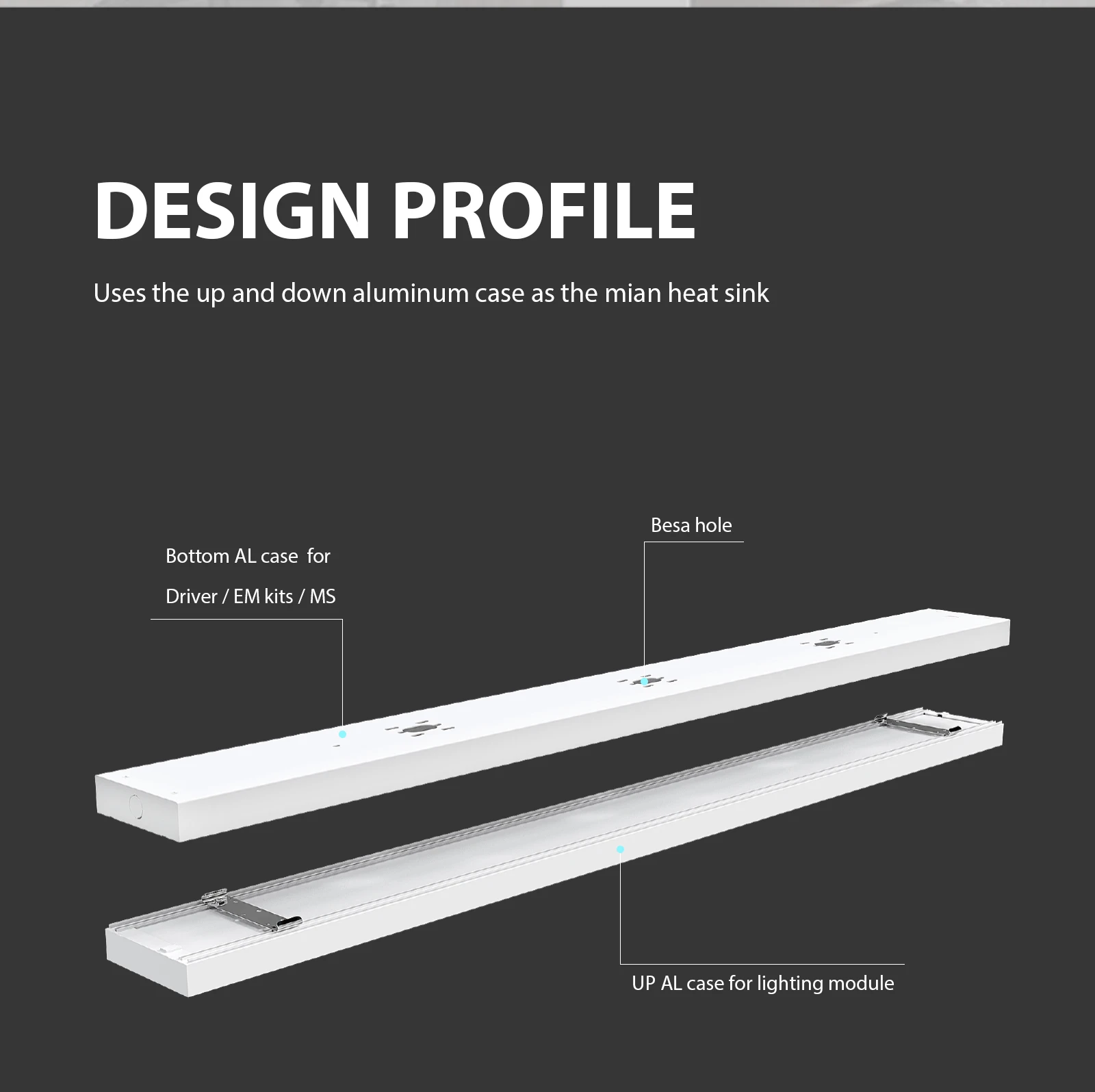

Kingston Batten waxay u isticmaashaa kiis aluminium ah oo kor iyo hoos ah sida weelka ugu weyn ee kulaylka, kaas oo aan caymin kaliya kuleyliyaha wanaagsan, laakiin sidoo kale bixiya dammaanad waqti dheer ah.
Kingston Batten waxay isticmaashaa PET diffuser ka Bright{0}}aragtida sida walxo ka soo horjeeda-, kaas oo aan dammaanad qaadin kaliya UGR<19, but also guarantees the beam angle of these range of batten series. The wattage and CCT switch on the driver as a standard for the kingston battens. It helps customers reduce inventory while also enabling fast delivery.

Tilmaam:

>UGR<19 with brightview film

>CCT shid darawalka LED

>55mm|80mm|120mm ballac ayaa la heli karaa

>Ra80 ama Ra90, SDCM<3

>Dhamaadka ama gadaal besa godka gelitaanka cable

>Shaqooyin kala duwan oo kala duwan sida fursadaha

>2ft/4ft/5ft/6ft cabbir la heli karo

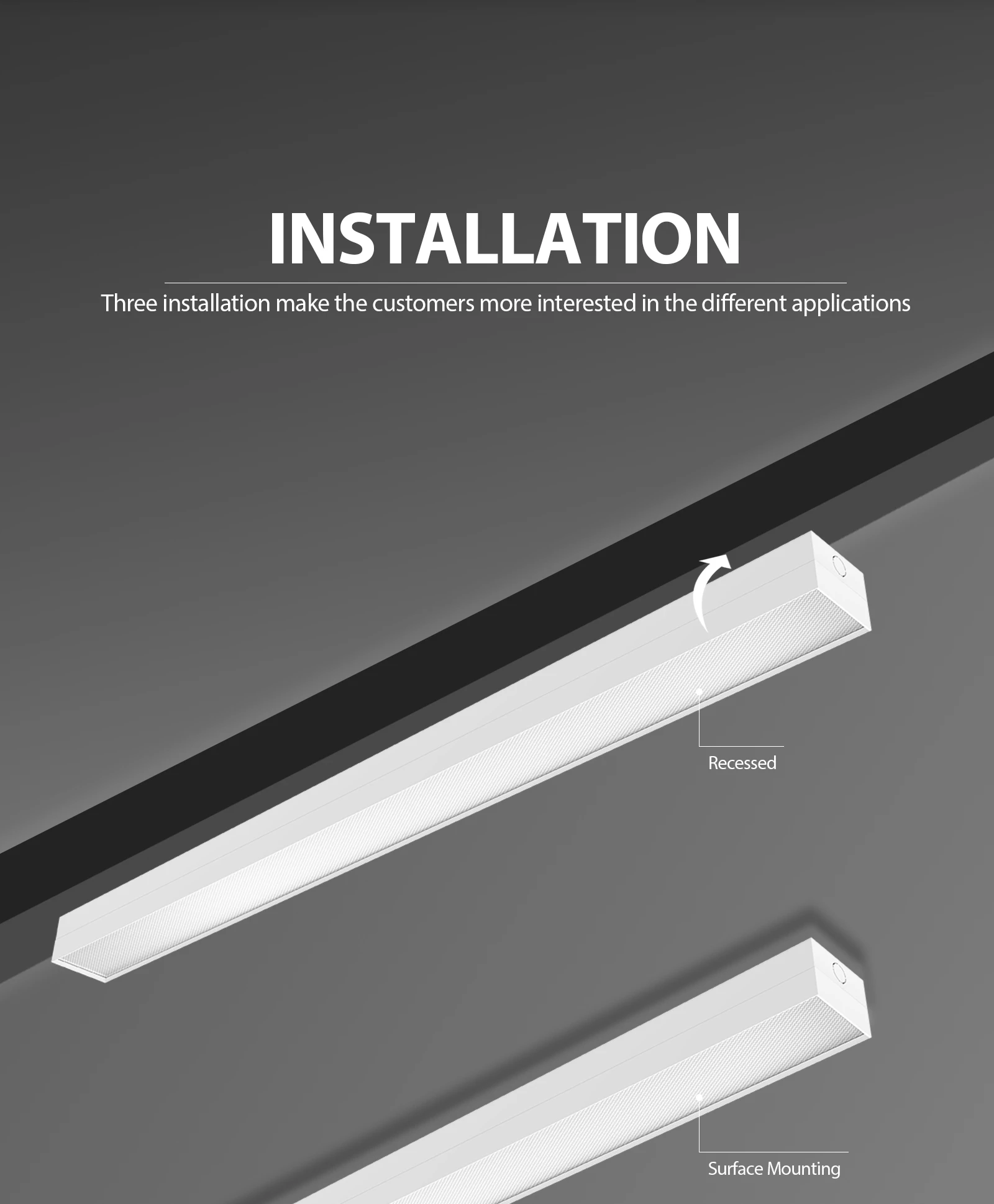

>Rakibaadda / korka korka/Rakibka hakinta

>5 sano oo dammaanad ah

Send Inquiry

Download

Description

Technical Parameters

HORDHAC:

Kinston Batten waxay bixisaa ballac 55mm, 80mm iyo 120mm ah oo laga dooran karo, taas oo ka dhigaysa macaamiisha aad u xiiseeya codsiyada kala duwan ee ganacsiga iyo xafiisyada.

HANTIDA:

Kingston UGR Batten 55mm waxaa loogu talagalay inay bixiso waxqabadka iftiinka sare iyadoo la hubinayo raaxada muuqaalka ugu sareysa. Waxtarka iyo xarrago leh, 2ft 4ft 5ft LED strip light wuxuu ku habboon yahay codsiyo badan oo kala duwan oo ka socda xafiisyada shirkadaha ilaa bay'ada tafaariiqda iyo goobaha warshadaha. Guryaha aluminiumku waa weel kuleyl aad u wanaagsan iyo - teknoolojiyadda sare ee SMD2835 waxay bixisaa soosaarka lumen oo kordhay.

Koodhka Dalabka	Ballaca	Awood lagu qiimeeyay	LM/W	Lumen	SDCM/Ra	Watt/CCT Bedel	Cabirka Alaabta	GW/CTN	QTY/CTN
BT100-02W-DT1-20F01	55mm	10/20W	nooca.130	nooca.1300/2600	<3/ Ra80/90	Y	L600xW55xH64	6.0kg	8pcs
BT100-04W-DT1-40F01	55mm	20/40W	nooca.130	nooca.2600/5200	<3/ Ra80/90	Y	L1200xW55xH64	11.5kg	8pcs
BT100-05W-DT1-50F01	55mm	30/50W	nooca.130	nooca.3900/6500	<3/ Ra80/90	Y	L1500xW55xH64	14.5kg	8pcs
BT100-06W-DT1-60F01	55mm	30/60W	nooca.130	nooca.3900/7800	<3/ Ra80/90	Y	L1800xW55xH64	17kg	8pcs
BT110{1}02W-DT1-20F01	80mm	10/20W	nooca.130	nooca.1300/2600	<3/ Ra80/90	Y	L600xW80xH64	7.0kg	6pcs
BT110-04W-DT1-40F01	80mm	20/40W	nooca.130	nooca.2600/5200	<3/ Ra80/90	Y	L1200xW80xH64	12.0kg	6pcs
BT110-05W-DT1-50F01	80mm	30/50W	nooca.130	nooca.3900/6500	<3/ Ra80/90	Y	L1500xW80xH64	14.0kg	6pcs
BT110{1}06W-DT1-60F01	80mm	30/60W	nooca.130	nooca.3900/7800	<3/ Ra80/90	Y	L1800xW80xH64	18.0kg	6pcs
BT120-02W-DT1-20F01	120mm	10/20W	nooca.130	nooca.1300/2600	<3/ Ra80/90	Y	L600xW120xH64	7.0kg	4pcs
BT120{1}04W-DT1-40F01	120mm	20/40W	nooca.130	nooca.2600/5200	<3/ Ra80/90	Y	L1200xW120xH64	10.5kg	4pcs
BT120-05W-DT1-50F01	120mm	30/50W	nooca.130	nooca.3900/6500	<3/ Ra80/90	Y	L1500xW120xH64	13.0kg	4pcs
BT120-06W-DT1-60F01	120mm	30/60W	nooca.130	nooca.3900/7800	<3/ Ra80/90	Y	L1800xW120xH64	15.5kg	4pcs

Kingston01

Kingston02

Kingston03

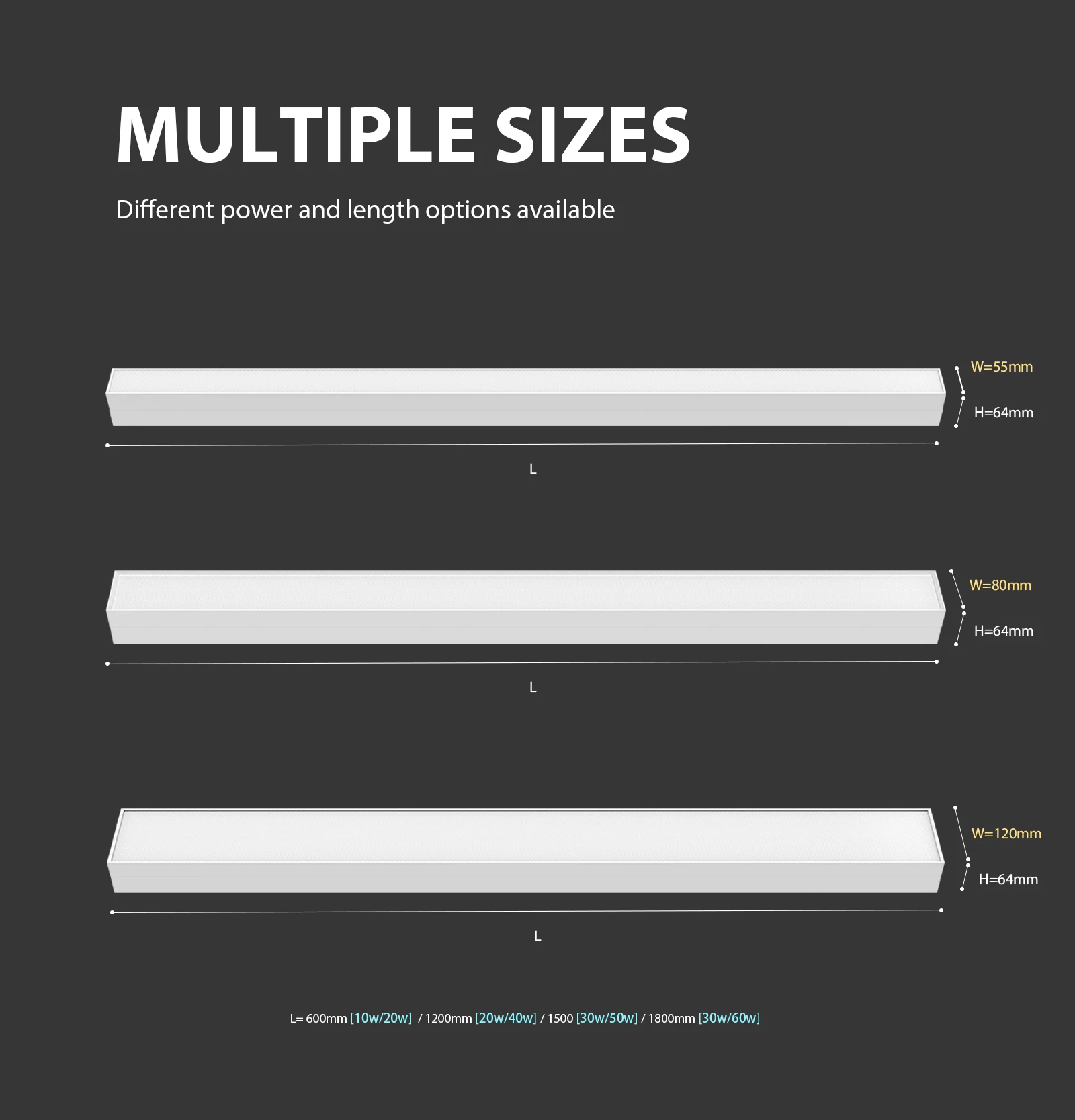

Kingston04

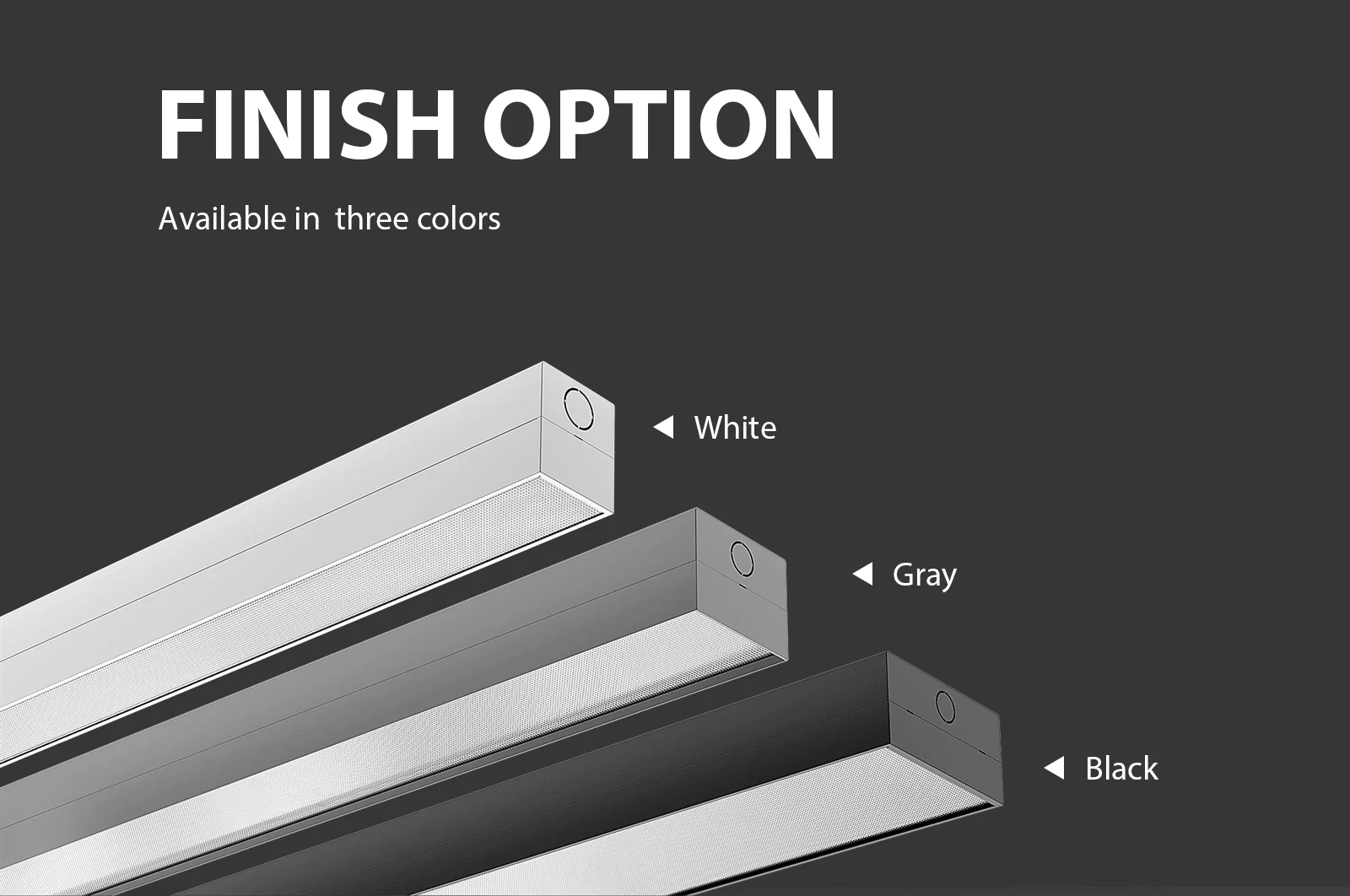

Kingston05

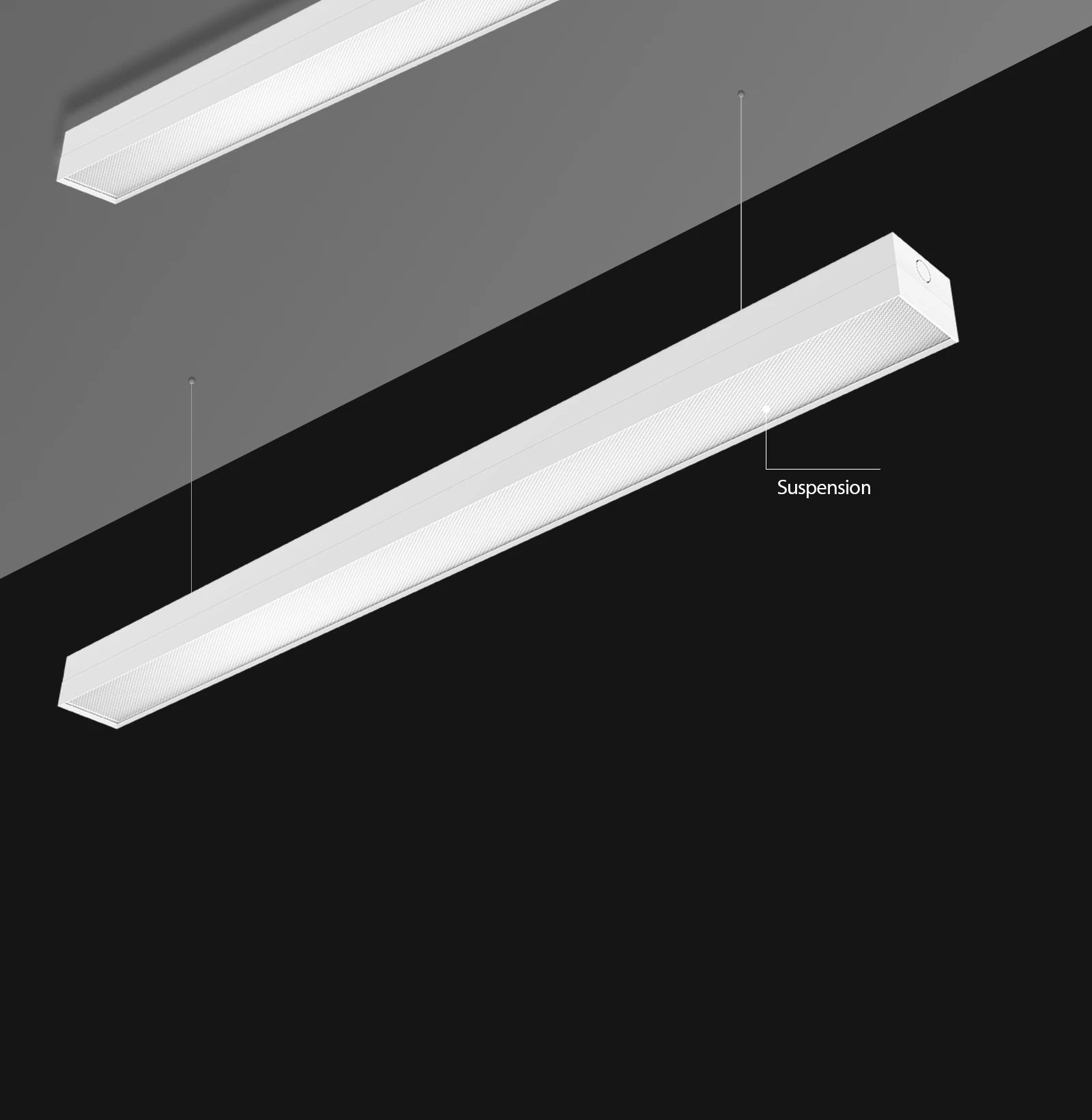

Kingston06
